Product introduction：

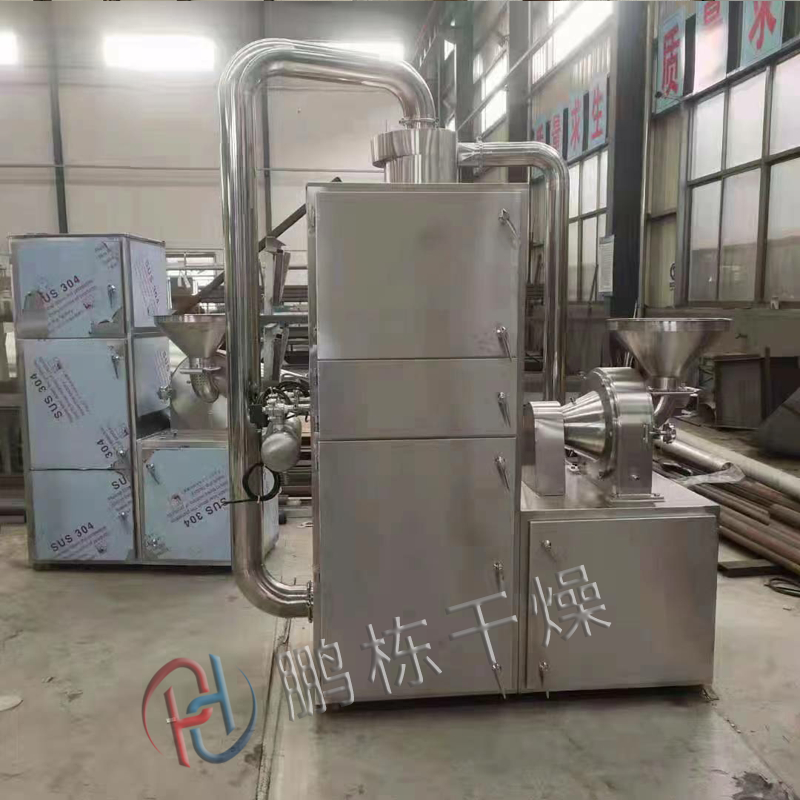

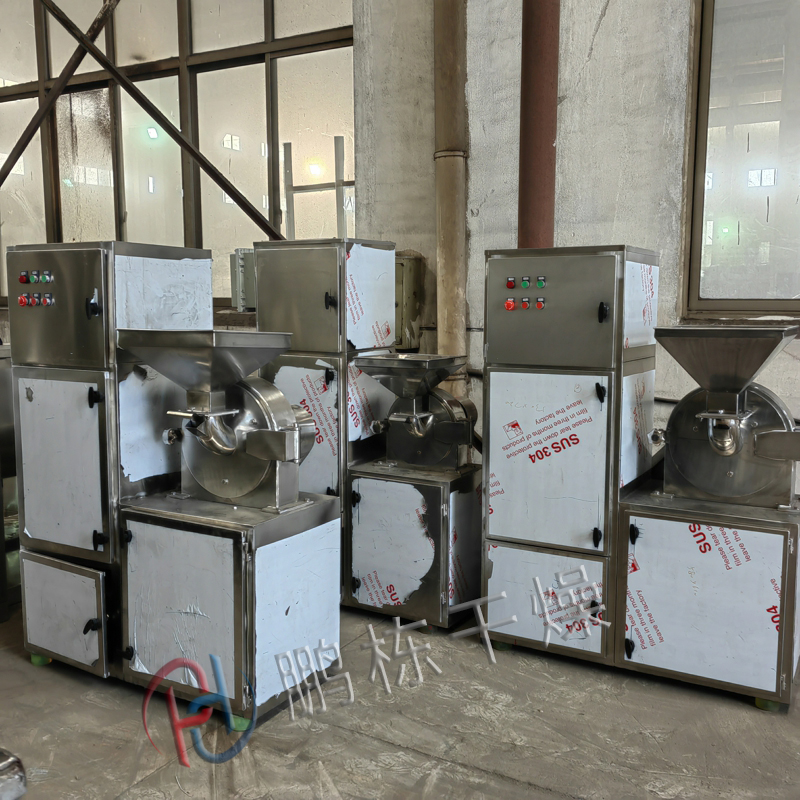

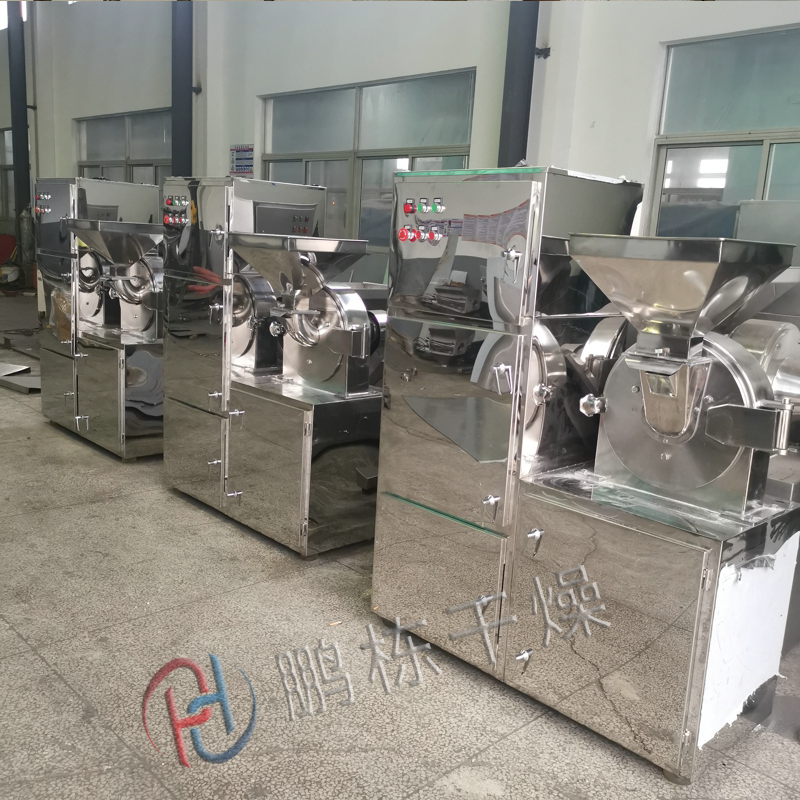

The B series mill produced by our company is made of excellent 304 stainless steel, which is mainly used for chemical materials, roots, branches and block materials, various grains with low oil content, cereals and other hard and brittle materials.
Technical parameter：
Model | 20B | 30B | 40B | 60B |
Productive capacity(kg/h) | 60-150kg/h | 100-300kg/h | 160-800kg/h | 500-1500kg/h |
Spindle speed(r/min) | 4500(r/min) | 3800(r/min) | 3400(r/min) | 2800(r/min) |
Feed size(mm) | 6mm | 10mm | 12mm | 15mm |
Fineness of finish(mm) | 60-120 Orders | 60-120 Orders | 60-120 Orders | 60-120 Orders |
Motor power(kw) | 4kw | 5.5kw | 11kw | 15kw |
Weight(kg) | 250kg | 320kg | 550kg | 680kg |
Overall dimensions (L x W x H) (mm) | 350x600x1250mm | 600x700x1450mm | 800x900x1550mm | 1000x900x1680mm |
The above data is for reference only, our company reserves the right to change the above data, if there is any change, without prior notice.
Working principle：
The machine makes use of the relatively high speed operation between the movable tooth plate and the fixed tooth plate, so that the crushed material is crushed by the impact of the tooth plate, friction and the collision between the materials.
The crushed material can be discharged directly from the grinding chamber, through the discharge port, the general material after grinding to be collected through the cotton bag, the crushed material is collected in the bag, the air is from the small hole of the bag, will not discharge the fine powder, so as not to waste, no pollution effect. The particle size is determined by replacing the screen with different mesh numbers.
Product characteristics：
B series grinding unit has simple structure, stable, stable operation and good grinding effect.
The crushed material can be discharged directly from the grinding chamber of the main machine, and the particle size can be obtained by changing the mesh screen with different aperture.
B series grinding unit is made of stainless steel material, no dust flying in the production process, and can improve the recovery rate of materials, reduce the cost of enterprises.
The inner wall of the casing is machined to achieve smooth surface, change the phenomenon of rough and powder accumulation on the inner wall, so that the production of food and chemical industry can meet the standards and meet the GMP requirements.
